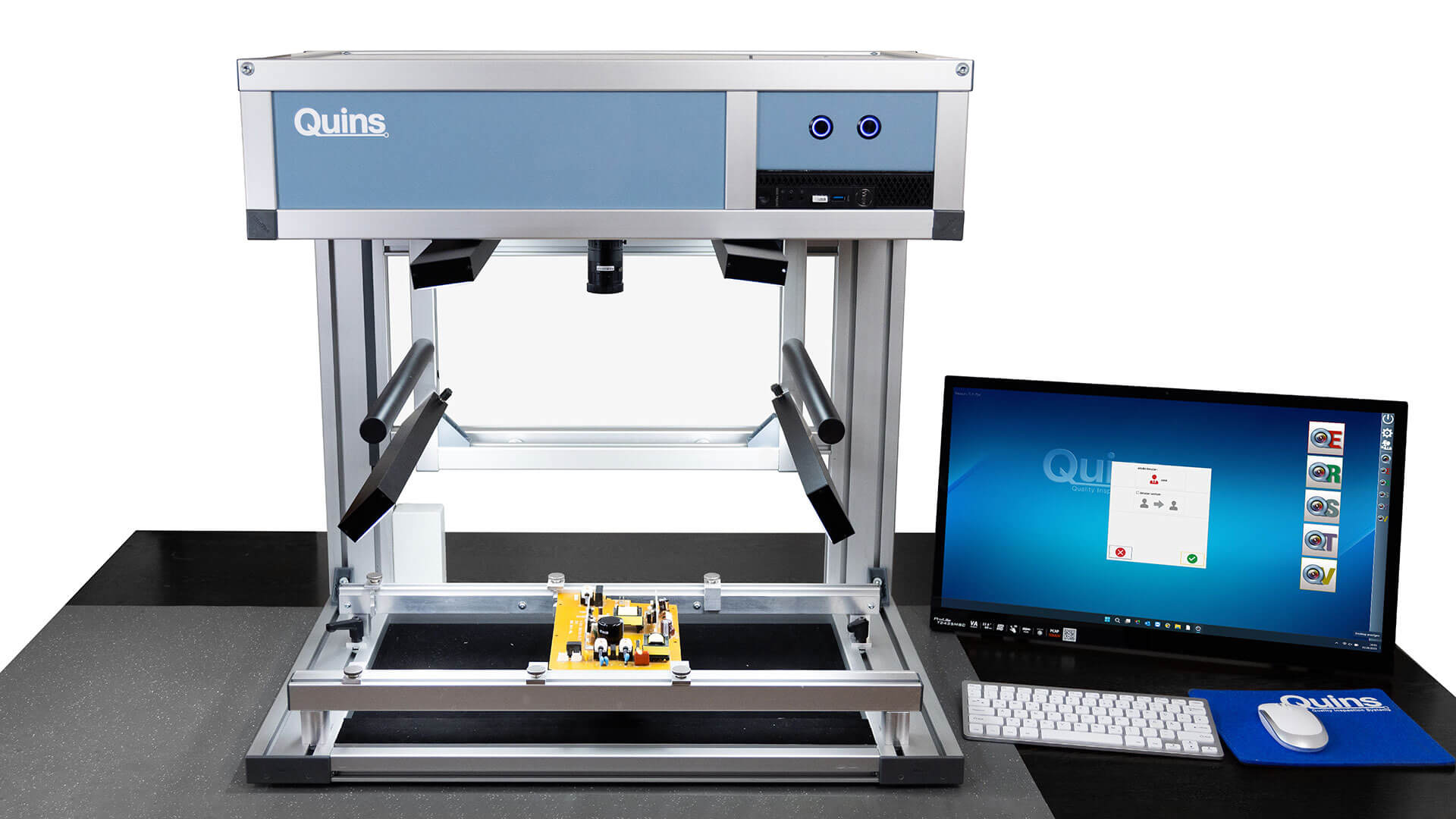

Quins Flex/THT as a tabletop workstation for the optical inspection of THT-assembled PCBs. Fast image acquisition via CMOS camera with a large field of view through automatically synchronized dual image capture. The specially developed LED lighting with 2 oblique light units and 2 additional indirect top light units ensures optimized, uniform illumination across the entire surface and thus perfect image quality.
Alternatively, also available as an assistance system with the Quins Mount software solution (see Quins Mount for functions).
Features
Technical details THT
Dimensions
765 x 500 x 786 mm (BxTxH)
Weight
40 kg
Image unit
20,44 MP Camera with CMOS sensor (Sony) with 16 mm 1.1 lens
Always the perfect solution for your application. Simply expand Quins Easy and Easy+ with the modules you need. Visual inspection and first article inspection paired with tracking, repair, statistics and data control. Easy.
